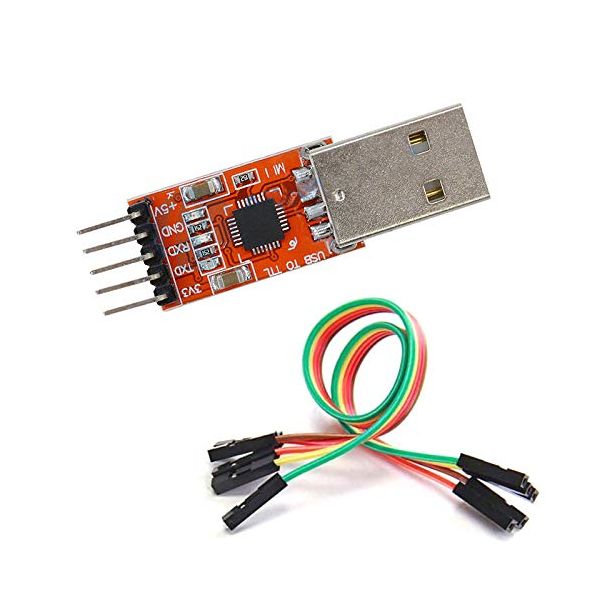

CP2102 based USB to UART TTL Converter Module - 5 Pin Out -
This is a USB2.0 to TTL UART Converter module which is based on CP2102 Bridge by SiLabs. This module can be used with Laptop's which don't have a standard serial port. This module creates a virtual COM port using USB on your computer which can support various standard Baud Rates for serial communication.
This module has 5 pin breakout connector which includes
TXD
RXD
GND
3V3
5V
This module can be used to upload Arduino sketches onto your Arduino loaded AVR devices over RXD, TXD pins of the module. 5 Pin Female to Female connector comes with this module.
You may need to install drivers for CP2102 before you use this module.
Built-in self-recovery fuse. In the event of an accidental short circuit, it can effectively protect your computer USB port and Downloader.
Built-in three LEDs: power indicator, data reception indicator, the data transmission indicator, working status
Specification:
CP2102 chip from SiLabs is a single-chip USB to UART bridge IC
It can be used to migrate legacy serial port based devices to USB
Stable and reliable chipset CP2102 USB specification 2.0 compliant with full-speed 12 Mbps
Standard USB type A male and TTL 5 pin; Support dual voltage 3.3V and 5V
Supports windows vista or XP or server 2003/200, Mac OS-X/OS-9, Linux
