The CP2104 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232/RS-485 designs to USB using a minimum of components and PCB space.
The CP2104 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, one-time programmable ROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 4 x 4 mm QFN-24 package (sometimes called “MLF” or “MLP”). No other external USB components are required.

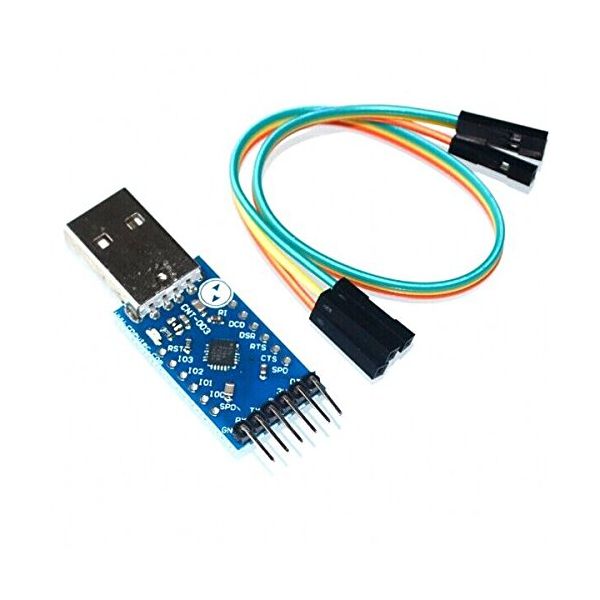

This is a USB 2.0 to TTL UART 6PIN CP2104 Module Serial Converter. Designed to be used for USB to TTL electronic projects. TTL interface output, Connect MCU easily to your computer. Event character support Line break transmission. USB suspend states supported via SUSPEND pins. Use the same driver as the CP2102 module.
Specification:
Built-in USB to RS232 Transfer chip
Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & +5V.
Temperature Range: -40 °C to +85 °C
Supports Windows 98SE, 2000, XP, Vista, Window7, OS 9, OS X & Linux.
Dimension: 52 mm x 17 mm (LxW).
CP2104 Device Drivers:
There are two sets of device drivers available for CP2104 devices: the Virtual COM Port (VCP) drivers and the USBXpress Direct Access drivers. Only one set of drivers is necessary to interface with the device.
