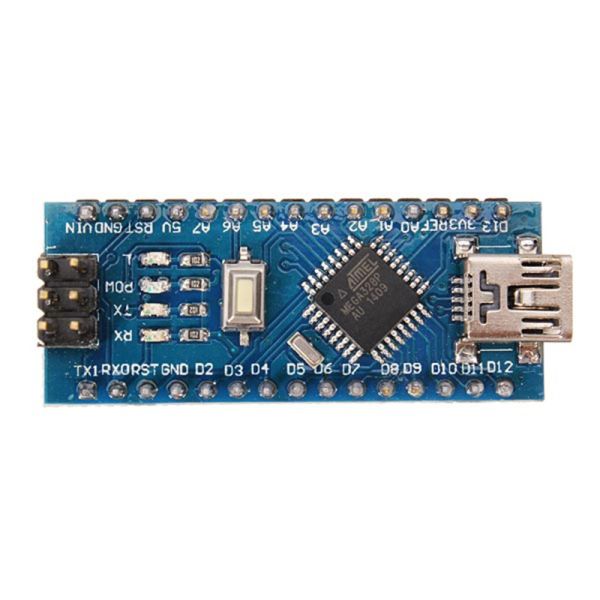

ATmega328P Nano V3 Controller Board Compatible Arduino Improved Version, this development uses USB to Serial Converter Chip CH340, Please install CH341SER driver if the board is not recognized in Arduino IDE
Feature:
Soldered Nano v3.0 atmega328 compatible, Nano Cable USB Mini B to USB A (cable colour might change from the one shown in picture)
Microcontroller: Atmel ATmega328P
Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz USB to Serial Converter: CH340
