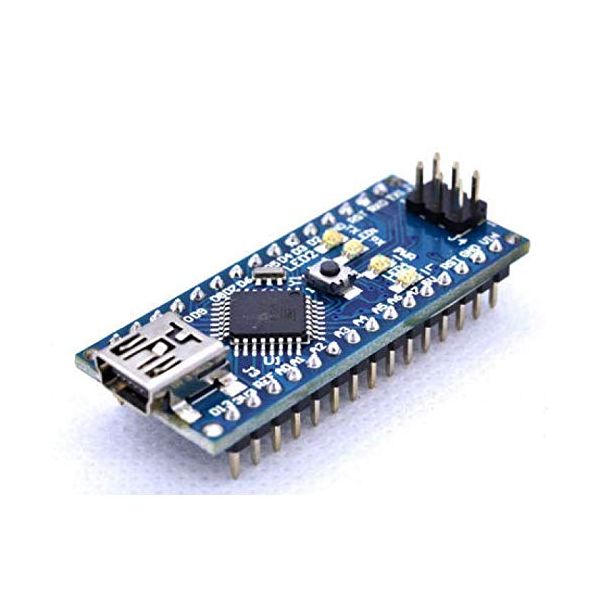

Nano V3 ATmega328P FTDI FT232 Mini USB Soldered Pins - with USB Cable - Compatible with Arduino & Android

ATmega328P Nano V3 Controller Board Compatible Arduino Improved Version, this development uses USB to Serial Converter Chip CH340, Please install FTDI FT232rl driver if the board is not recognized in Arduino IDE

• Soldered Nano v3.0 atmega328 compatible, Nano Cable USB Mini B to USB A (cable color might change from the one shown in picture)

• Microcontroller: Atmel ATmega328P; FTDI FT232rl USB to serial chip

• Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V

• Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA

• Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz USB to Serial Converter: CH340
